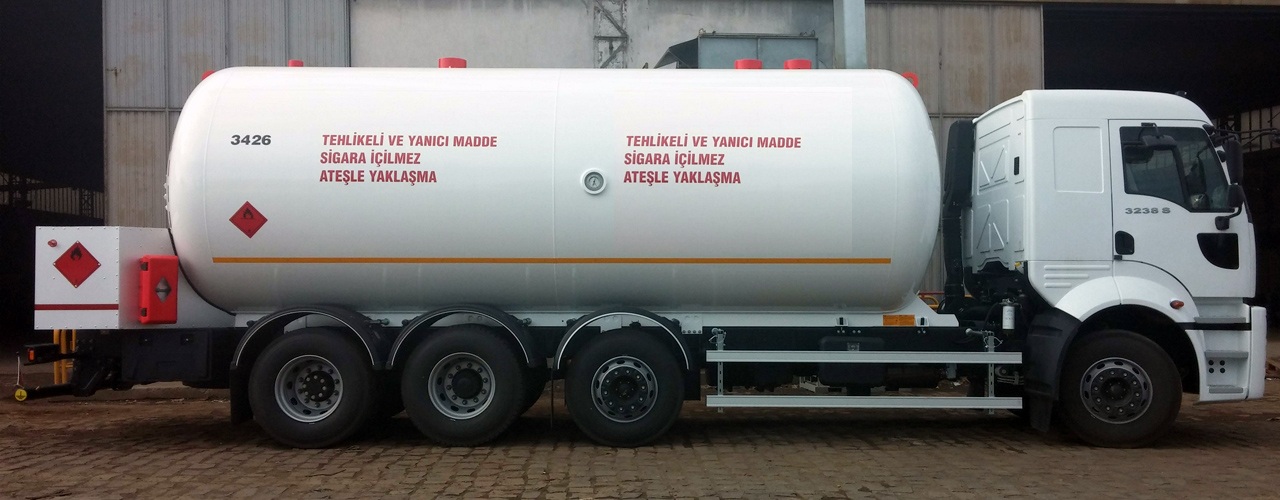

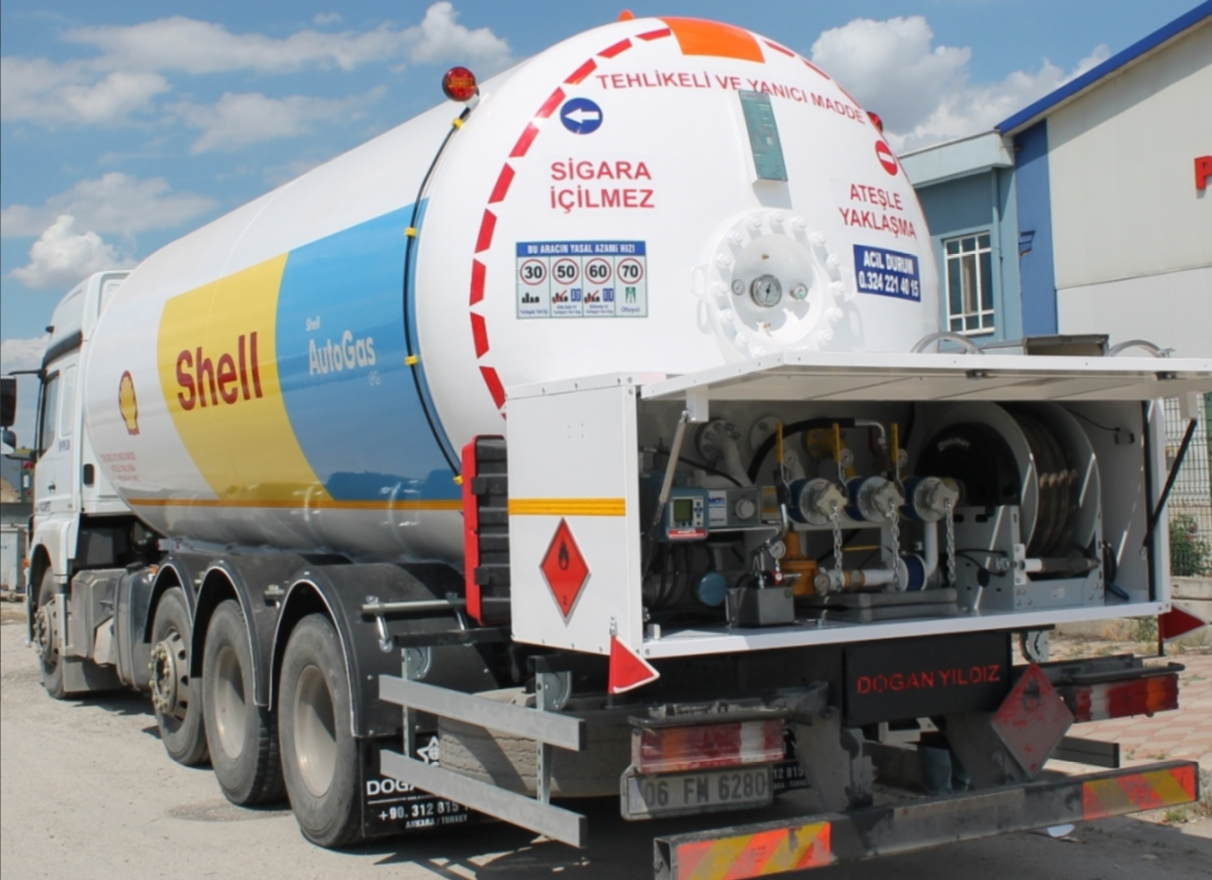

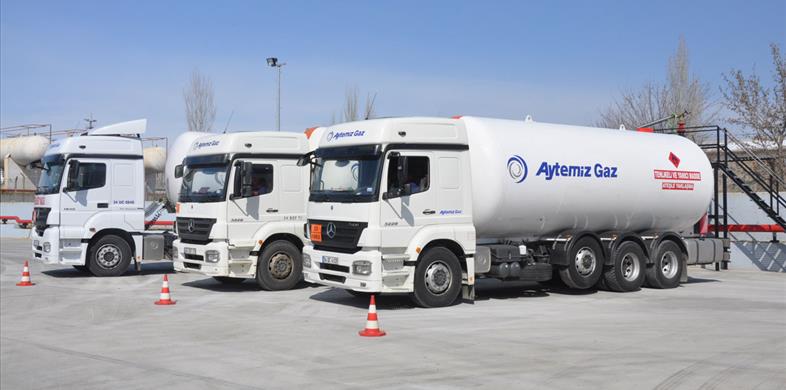

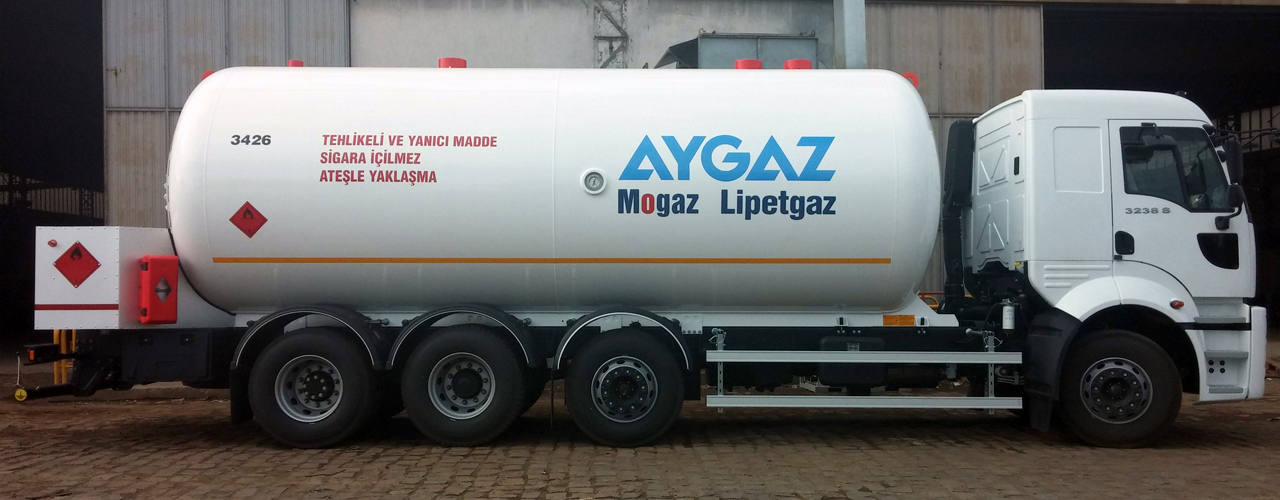

Product Description : Bobtail LPG Tank
Volumes : 10 m3…to 34 m3
Standards : EN 12493 ADR, AD 2000 (MERKBLATTER). Upon Customer Request manufacturing can be done according to ASME or other Standards
Steel Plate Quality : P355 NH-NL, P460 NL. According to EN 10028-3
Design Temperature : EN 12493, AD 2000 (MERKBLATTER), ASME, Sec. 8 Div. 1.
Design Pressure : According to The Standard
Test Pressure : According to The Standard
Loading & Unloading : Upon Customer Request and Standards.
Control and Certification: Independed Third Party
Weldings : All welded joints are tested according to the manufacturing standard. X-Ray, UT, Penerant, Magnetic Particular Tests are performed.
Paint Work : Tanks are sand blasted and coated. Dogan Yıldız offers High Quality Paint Work with Long Life Time by using it’s High Technologic Sandblasting & Painting Booths System.

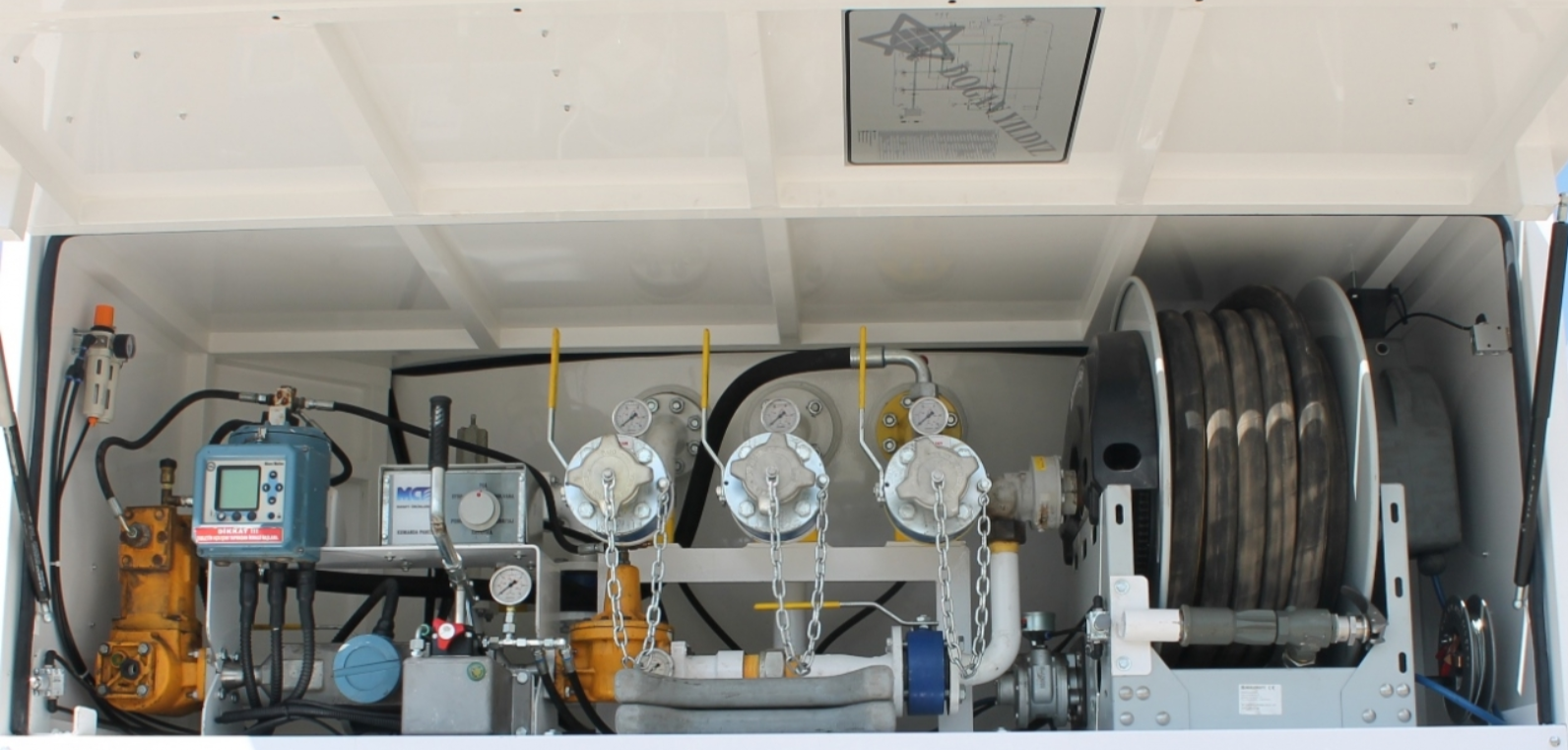

LPG Transfer Systems : PTO&Hydraulic, PTO&Shaft, Electrical
LPG - Bobtail Tank
